Created with Pixso. Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
  • name
  • name
  • name
  • name
  • name

Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter

Brand Name: Kimghz technology
Model Number: KH-MICO612
MOQ: 10 Pieces
Price: negotiation
Delivery Time: 2-5days
Payment Terms: L/C,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Original/CHINA
Certification:
CE
Model:
KH-MICO612
Frequency:
3060MHz~3500MHz
Infrared Image Resolution:
640× 512
Pixel Pitch:
12μm
Operating Frequency Band:
8~14μm
Image Frame Rate:
≤50Hz
Focus Mode:
Manual
Detector Type:
Vanadium Oxide Uncooled Infrared Focal Plane Array
Packaging Details:
International Standard Packing
Supply Ability:
10000pieces/month
Highlight:

Outdoor thermal imaging camera with hotspot tracking

,

Professional thermal camera with adjustable shutter

,

Thermal imaging transmitter for outdoor use

Product Description
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Designed specifically for outdoor engineering and industrial scenarios, this 640P Infrared Thermal Imaging Camera Module stands out as a compact, lightweight, and easily integrable solution. Its high-sensitivity uncooled VOx infrared detector enables the module to produce clear, detailed thermal images, making fast and accurate target detection achievable even in pitch-black darkness or harsh working environments.
With adjustable shutter response, hotspot tracking capability, multiple palette display options, and three available resolution configurations (256×192 / 384×288 / 640×512), this thermal imaging module is highly adaptable to UAV applications, security surveillance, industrial flaw detection, firefighting, search & rescue operations, and outdoor monitoring systems. The inclusion of CVBS and USB outputs ensures hassle-free integration with various hardware platforms and video transmission devices.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-MICO612
Infrared image resolution 640×512
Pixel pitch 12μm
Operating frequency band 8~14μm
Image frame rate ≤50Hz
Focus Mode Manual
Detector type Vanadium oxide uncooled infrared focal plane array

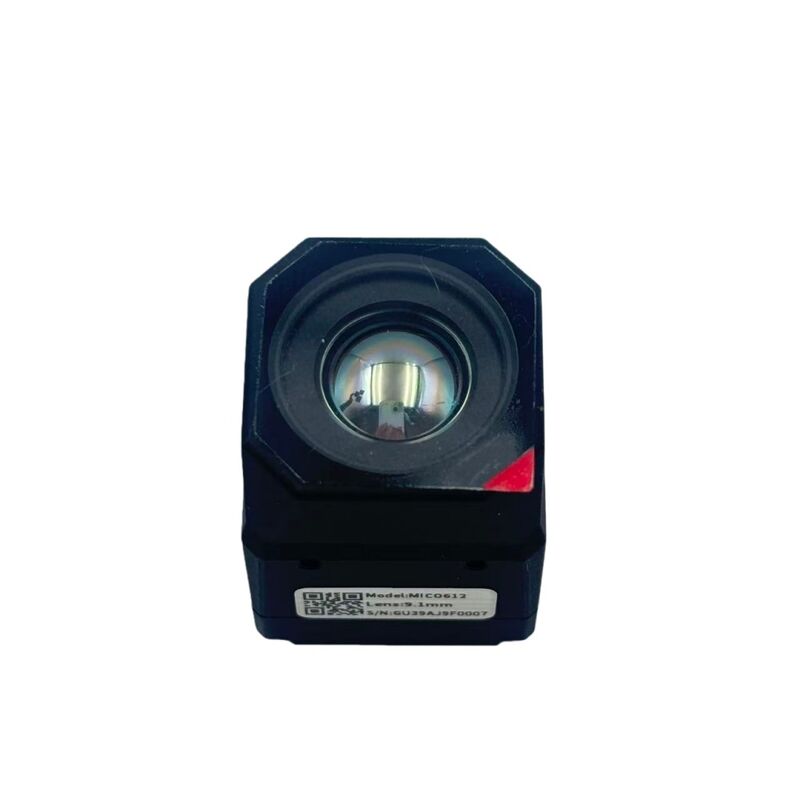

Product Images
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju </div> <div class= Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adju <div class=3.3GHz FPV VTX installation example on drone frame
Key Features
  • High-Sensitivity VOx Infrared Detector: Utilizes an uncooled vanadium oxide focal plane array covering the 8-14μm spectral range, which ensures stable and precise thermal imaging results.
  • Multiple Resolution Options: Offers 256×192, 384×288, and 640×512 infrared resolutions to meet different performance requirements and budgetary needs of various projects.
  • Steady 50Hz Frame Rate: Boasts a refresh rate of up to 50Hz, ensuring real-time thermal video with smooth playback and no lag or motion distortion.
  • CVBS / USB Video Output: Provides standard PAL (720×576) video output, enabling convenient integration with displays, recorders, and wireless video transmission equipment.
