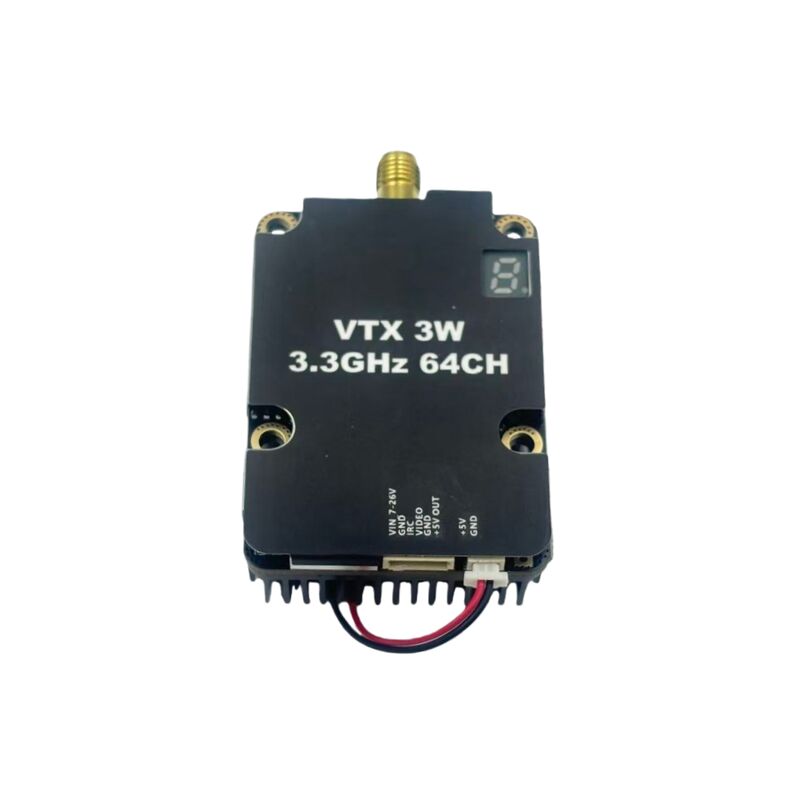

3.3GHz 3W Variable Power Output Wireless Video Transmitter Module for Drones

Name: 3.3GHz 3W Variable Power Output Wireless Video Transmitter Module for Drones
Brand: Shenzhen Xinhu Communication Co., Ltd.
SKU: KH-ALV3303AC
Availability: InStock

Brand Name:	Kimghz technology
Model Number:	KH-ALV3303AC
MOQ:	10
Price:	negotiation
Delivery Time:	3-8days
Payment Terms:	L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Model:

KH-ALV3303AC

Frequency Range:

3060MHz-3500MHz

Channel:

64CH

Power:

Pit/1W/3W

Protocol:

IRC-Tramp

Weight:

40.4g

Dimension:

50*36*16mm

Packaging Details:

International Standard Packing

Supply Ability:

10000pieces/month

Highlight:

3.3GHz video transmitter

3W high-power video transmitter

200-3000MW signal transmitter

Product Description

3.3GHz 3W Variable Power Output Wireless Video Transmitter Module for Drones

Technical Specifications

Band Name	Kimghz technology
Model Number	KH-ALV3303AC
Frequency	3.3GHz
Power	Pit/1W/3W
Channel	64CH
Power Supply	7-26V
Protocol	IRC
Frequency Range	3060MHz-3500MHz

Product Overview

This robust VTX module stands out in wireless video transmission applications, featuring an input voltage range of 7–26V (6S battery recommended for stable and continuous operation) and a 5V output voltage for powering associated components. It is configured with 64 channels and three power levels (Pit/2W/7W), catering to different usage scenarios from indoor testing to outdoor long-range transmission. With power consumption figures of 1.84A at 12V and 0.88A at 25.2V, it strikes an ideal balance between power output and energy efficiency. Additionally, the module is equipped with IRC functionality, SMA antenna connector, JST-6Pin cable connector, and 30.5*30.5mm mounting holes, making it both user-friendly and highly compatible.

Testing & Performance

Key Advantages

1. Flexible Power Compatibility: The 7–26V wide input voltage range supports multiple battery configurations, and 6S battery recommendation ensures optimal and stable operation.
2. Versatile Transmission Options: 64 channels and three adjustable power levels (Pit/2W/7W) allow users to switch modes freely according to different transmission distance and environment requirements.
3. Easy Integration & Compatibility: Standard 30.5*30.5mm mounting holes, SMA antenna connector and JST-6Pin cable connector simplify installation and enable seamless matching with most mainstream devices.
