| Brand Name: | Kimghz technology |
| Model Number: | KH-MICO612 |
| MOQ: | 10 Pieces |
| Price: | negotiation |
| Delivery Time: | 2-5days |
| Payment Terms: | L/C,T/T,Western Union |

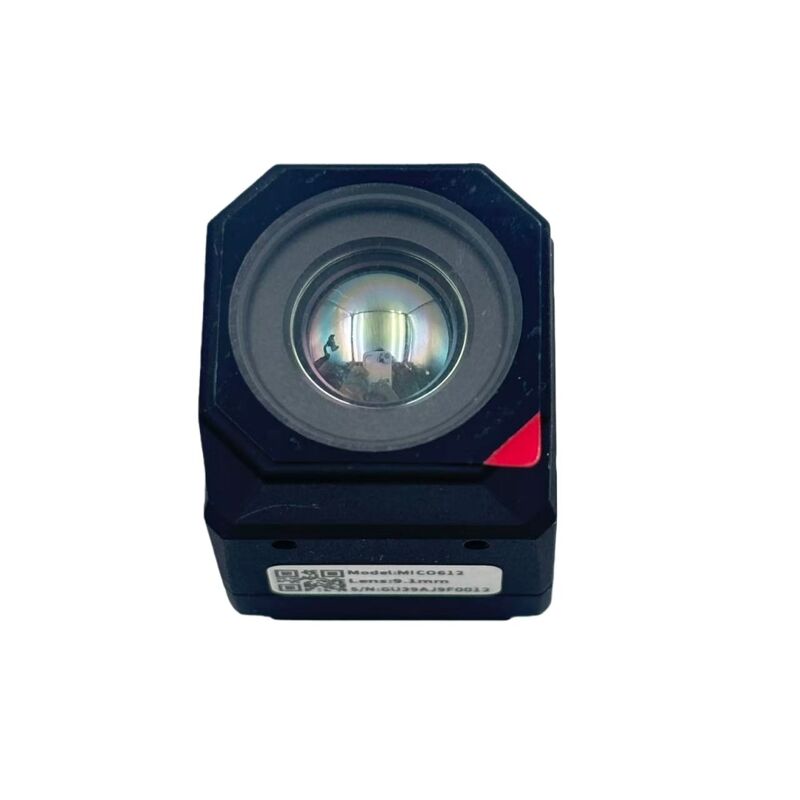

This Infrared Thermal Imaging Camera Module is a compact, lightweight, and easy-to-integrate solution designed for outdoor engineering and industrial applications. Featuring a high-sensitivity uncooled VOx infrared detector, it delivers clear, detailed thermal images, enabling fast and accurate target detection even in complete darkness or harsh environments.
With multiple resolution options (256×192 / 384×288 / 640×512), adjustable shutter response, hotspot tracking, and multi-palette display modes, this thermal camera module is well suited for UAVs, security surveillance, industrial inspection, firefighting, search & rescue, and outdoor monitoring systems. CVBS and USB outputs ensure easy integration with various platforms and video transmission systems.
| Brand Name | Kimghz technology |
|---|---|
| Model Number | KH-MICO612 |
| Infrared image resolution |
640× 512
|
| Pixel pitch | 12μm |
| Operating frequency band |
8~14μm
|
| Image frame rate |
≤50Hz
|
| Focus Mode | Manual |
| Detector type | Vanadium oxide uncooled infrared focal plane array |
High-Sensitivity VOx Infrared Detector
Uncooled vanadium oxide focal plane array with 8–14μm spectral range, ensuring stable and accurate thermal imaging.
Multiple Resolution Options Available
Supports 256×192, 384×288, and 640×512 infrared resolutions to meet different performance and budget requirements.
Smooth 50Hz Frame Rate
Up to 50Hz refresh rate, delivering fluid, real-time thermal video without lag or motion blur.
CVBS / USB Video Output
Standard PAL (720×576) video output for easy integration with displays, recorders, and wireless video transmitters.
