Basic Properties
Place of Origin:
Original/CHINA
Brand Name:
Kimghz technology
Certification:
CE
Model Number:
KH-ALV3306AC
Trading Properties
Minimum Order Quantity:
10 Pieces
Price:
negotiation
Payment Terms:
L/C,T/T,Western Union
Supply Ability:
10000pieces/month
Product Summary
Adjustable Power Output 3.3GHz 6W FPV VTX Industrial-Grade with Stable Transmission Industrial-Grade 3.3GHz 6W FPV VTX with stable transmission and 3060MHz-3500MHz frequency coverage for professional drone applications. This advanced video transmitter with adjustable power output is designed for ...
Product Custom Attributes
Highlight
industrial-grade FPV video transmitter
,adjustable power output VTX
,3.3GHz stable transmission VTX
Model:
KH-ALV3306AC
Frequency:
3060MHz~3500MHz
Input Voltage:
7-26V
Power Output:
7W
Channels:
64CH
Output Voltage:
5V
Range:
3060MHz~3500MHz
Weight:
40.4g
Dimensions:
50*38*16mm
Product Description
Detailed Specifications & Features
Adjustable Power Output 3.3GHz 6W FPV VTX Industrial-Grade with Stable Transmission
Industrial-Grade 3.3GHz 6W FPV VTX with stable transmission and 3060MHz-3500MHz frequency coverage for professional drone applications. This advanced video transmitter with adjustable power output is designed for reliable, low-latency, long-range drone video transmission in professional and industrial UAV applications.
Product Overview
The 3.3G 64-channel VTX is a high-performance wireless video transmission module specifically engineered for drone applications, providing stable and reliable video signal transmission with flexible parameter customization. Supporting 7-26V wide voltage input, it adapts to various drone power supply systems and features a dedicated LED display for intuitive real-time monitoring of working parameters.
Technical Specifications
| Brand Name | Kimghz technology |
| Model Number | KH-ALV3306AC |
| Frequency | 3060MHz~3500MHz |
| Power Output | 6 Watt |
| Output Voltage | 5V |
| Power Supply | 7-26V |
| Antenna Connector | SMA connector |
| Extra Feature | IRC |
Product Images

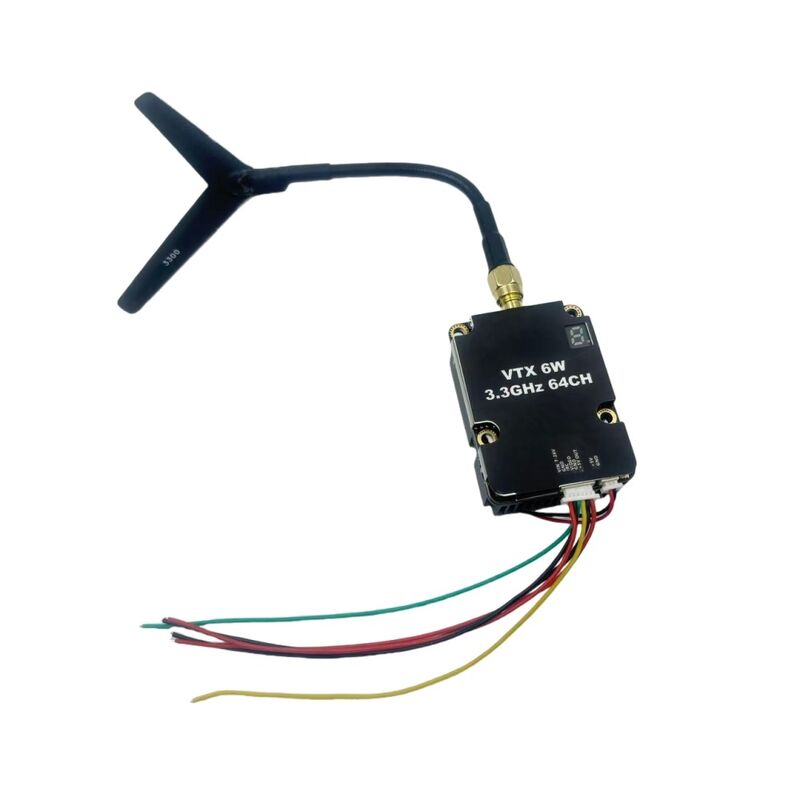

Front View
Side View
Technical Details
Connectivity Options
Specifications Display
Installation Example
Key Features
- Frequency & Channel Configuration: 3.3G frequency band with 8 selectable bands (A-H) and 8 channels per band, totaling 64 channels for strong anti-interference and flexible signal transmission
- Flexible Power Adjustment: Supports 2 high-power levels (2000mW and 7000mW) and 0dBm P-mode, with convenient power switching via button operation (4-second press to enter, short press to adjust)
- Wide Voltage Adaptation: 7-26V input voltage range, compatible with various drone power supply systems for strong versatility
- Enhanced Reliability: Designed with dedicated heat sink for optimal thermal management, ensuring stable operation under long-term high-load transmission conditions
- Safe Operation: Supports pit mode for safe ground debugging with flexible entry/exit methods via Betaflight or button operation
