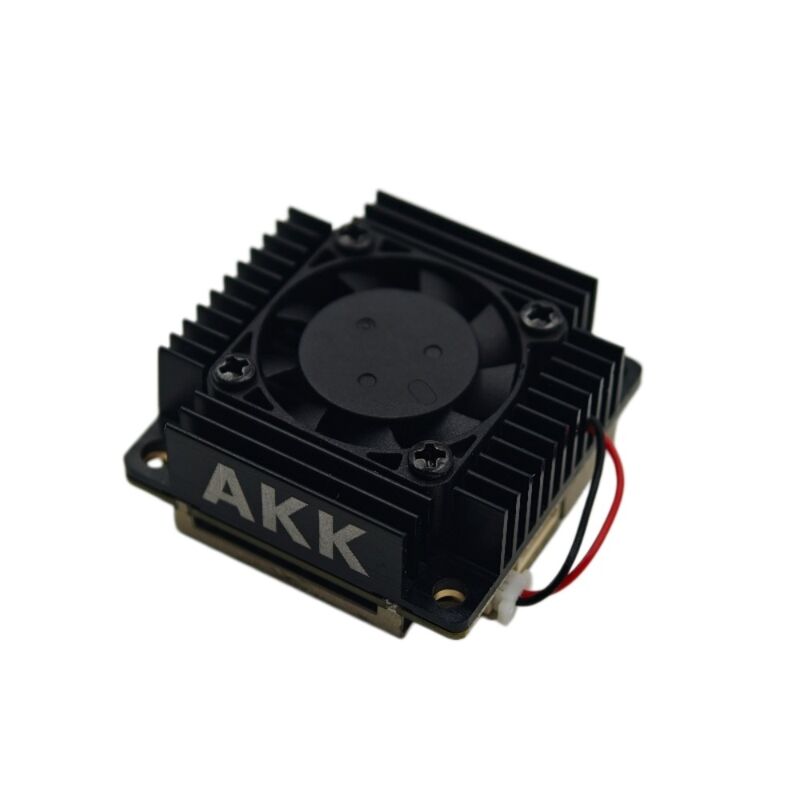

Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter

Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter
Basic Properties
Place of Origin: Original/CHINA
Brand Name: AKK
Certification: CE
Model Number: TX5000AC
Trading Properties
Minimum Order Quantity: 10 Pieces
Price: 47.8$-49.8$
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000pieces/month
Product Summary
Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter The AKK TX5000AC is a premium 5.8GHz wireless audio-video transmitter optimized for professional drone applications, offering strong signal and smart operation. Technical Specifications Band Name AKK Model Number TX5000AC Frequency ...
Product Custom Attributes
Highlight

5.8GHz FPV VTX transmitter

,

96CH video transmitter with warranty

,

AKK TX5000AC Smart Transmitter

Features:
Smart Audio, Pit Mode, Adjustable Power Levels
Dimensions:
36(W)x36(D)mm, 30.5*30.5mm (hole)
Compatibility:
FPV Racing Drones
Frequency:
5.8GHz
Transmission Power:
25/250/ 500/1000 /2000/3000/5000mW Adjustable
Antenna Connector:
SMA
Channels:
96CH Excluding Anteena
Weight:
25g
Input Voltage:
14.6V To 28V
Product Description
Detailed Specifications & Features

Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter


The AKK TX5000AC is a premium 5.8GHz wireless audio-video transmitter optimized for professional drone applications, offering strong signal and smart operation.

Technical Specifications
Band Name AKK
Model Number TX5000AC
Frequency 5.8GHz
Power Output 5 Watt
Channels 96CH
Power Supply 14.6V to 28V
Protocol Smart Audio
Frequency Range 4900-6060MHz
Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter 0Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter 1Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter 2
Product Testing
Professional 5.8GHz 96CH 5W FPV VTX – AKK TX5000AC Smart Transmitter 3

Key Features


· 5W high-power mode for extreme long-range FPV transmission

· 3W low-power mode for extended flight time and energy efficiency

· 96-channel spectrum provides abundant interference-free options

· Wide voltage support (14.6V-28V) fits 4S to 6S battery systems
