| Brand Name: | Kimghz technology |
| Model Number: | KH-MICO612 |
| MOQ: | 10 Pieces |
| Price: | negotiation |
| Delivery Time: | 2-5days |
| Payment Terms: | L/C,T/T,Western Union |

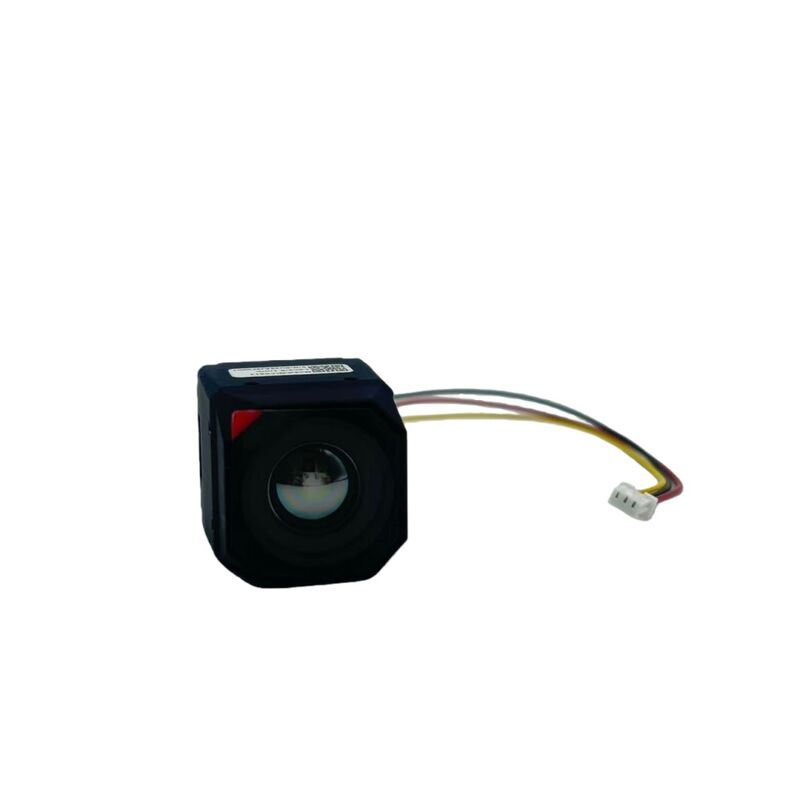

The 640P Infrared Thermal Imaging Camera Module is a compact-sized, lightweight, and simple-to-integrate solution specifically developed for outdoor engineering and industrial scenarios. Equipped with a high-sensitivity uncooled VOx infrared detector, it provides sharp, high-definition thermal imagery, allowing for quick and precise target identification even in total darkness or severe environmental conditions.
Offering multiple resolution choices (256×192 / 384×288 / 640×512), adjustable shutter response speed, hotspot tracking functionality, and various palette display modes, this thermal camera module is ideally suited for UAVs, security monitoring systems, industrial inspections, firefighting operations, search and rescue missions, and outdoor surveillance equipment. CVBS and USB output interfaces guarantee seamless integration with a wide range of platforms and video transmission systems.
| Brand Name | Kimghz technology |
|---|---|
| Model Number | KH-MICO612 |
| Infrared image resolution | 640×512 |
| Pixel pitch | 12μm |
| Operating frequency band | 8~14μm |
| Image frame rate | ≤50Hz |
| Focus Mode | Manual |
| Detector type | Vanadium oxide uncooled infrared focal plane array |
Adopts an uncooled vanadium oxide focal plane array with a spectral range of 8-14μm, ensuring consistent and accurate thermal imaging performance.
Compatible with 256×192, 384×288, and 640×512 infrared resolutions, catering to diverse performance demands and budget constraints.
Features a maximum refresh rate of 50Hz, delivering fluid, real-time thermal video streams without lag or motion blurring.
Supports standard PAL (720×576) video output, facilitating easy connection with displays, recorders, and wireless video transmitters.
