Industrial-Grade Infrared Camera for Engineering – Adjustable Shutter & Real-Time Hotspot Tracking
Industrial infrared camera with adjustable shutter
,Engineering thermal camera with hotspot tracking
,Infrared video transmitter with real-time monitoring

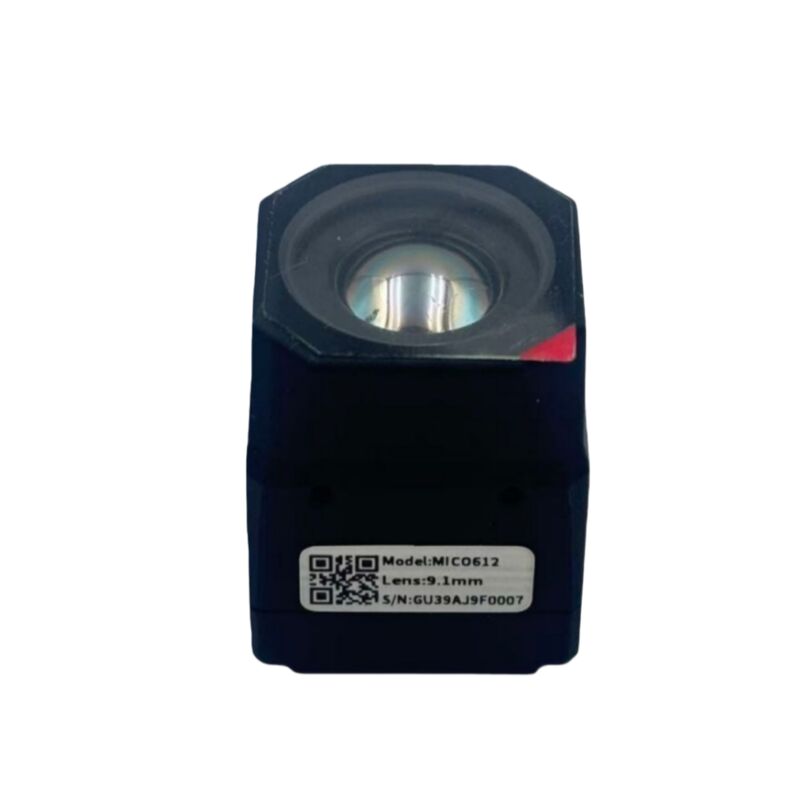

Boasting a high-resolution VOx sensor, the 640P Infrared Thermal Imaging Camera Module is a compact, lightweight, and integration-friendly solution tailored for outdoor engineering and industrial use. Its high-sensitivity uncooled VOx infrared detector delivers crisp, detailed thermal images, allowing users to detect targets quickly and accurately—even in complete darkness or extreme environmental conditions.
This thermal camera module comes with multiple resolution options (256×192 / 384×288 / 640×512), adjustable shutter response settings, hotspot tracking, and various display palettes, making it suitable for a wide range of applications including UAVs, security monitoring, industrial inspection tasks, firefighting, search and rescue, and outdoor surveillance systems. CVBS and USB output ports ensure easy compatibility and integration with different platforms and video transmission systems.
| Brand Name | Kimghz technology |
| Model Number | KH-MICO612 |
| Infrared image resolution | 640×512 |
| Pixel pitch | 12μm |
| Operating frequency band | 8~14μm |
| Image frame rate | ≤50Hz |
| Focus Mode | Manual |
| Detector type | Vanadium oxide uncooled infrared focal plane array |
- High-Sensitivity VOx Infrared Detector: Incorporates an uncooled vanadium oxide focal plane array with a 8-14μm spectral range, ensuring reliable and accurate thermal imaging performance at all times.
- Various Resolutions to Choose From: Supports three infrared resolutions—256×192, 384×288, and 640×512—to accommodate different performance expectations and budget limitations.
- Fluid 50Hz Frame Rate: With a maximum refresh rate of 50Hz, the module delivers real-time thermal video that is smooth, lag-free, and free from motion blur.
- CVBS / USB Video Output: Features standard PAL (720×576) video output, making it easy to integrate with displays, recorders, and wireless video transmitters for versatile use.
