GaN-Based 50W Drone Jamming Power Amplifier Module with 100~8000MHz Wideband Coverage
GaN-based 50W drone jamming amplifier
,wideband power amplifier 100-8000MHz
,drone jamming module with warranty
This 100~8000MHz wide frequency coverage module provides effective jamming and countering of UAV signals across the entire spectrum, creating a comprehensive shield against target drones. When facing UAVs operating at different frequencies, it responds instantly without adjustment, neutralizing signal threats immediately.
Compared to ordinary narrowband countermeasure modules, this product covers a wider frequency range and supports 10-200MHz customizable bandwidth. Combined with its GaN-based high-efficiency amplification design, it achieves stronger interference intensity. In complex electromagnetic environments with multiple UAVs, this design provides faster and more comprehensive signal suppression.
Technical Specifications
| Brand Name | Kimghz technology |
|---|---|
| Model Number | KH-PAC50W |
| Frequency | 100~8000MHz |
| Power Output | 50 Watt |
| Electric Current | ≤4.8A |
| Power Supply | 28V |
| Output Interface | SMA connector |
| Power Supply Interface | Power Cord |
- Frequency Coverage: 100~8000MHz preferred, realizing full-spectrum UAV signal jamming; some models support 10-200MHz customizable bandwidth to flexibly adapt to specific countermeasure scenarios.
- Core Design: GaN-based Class AB design preferred, balancing efficiency and interference intensity; equipped with patented heat dissipation technology to ensure stable operation under high-load conditions.
- Impedance Matching: 50Ω input/output impedance fixed, compatible with mainstream electronic protection equipment to avoid signal loss or component damage.
- High Reliability: Compact design with GaN substrate technology mounted on copper carrier and patented heat dissipation enhancement for stable operation under long-term high-load conditions.
- Optimized Integration: Rugged shell design balances structural strength and portability with internal circuit layout optimized for compact size and light weight.

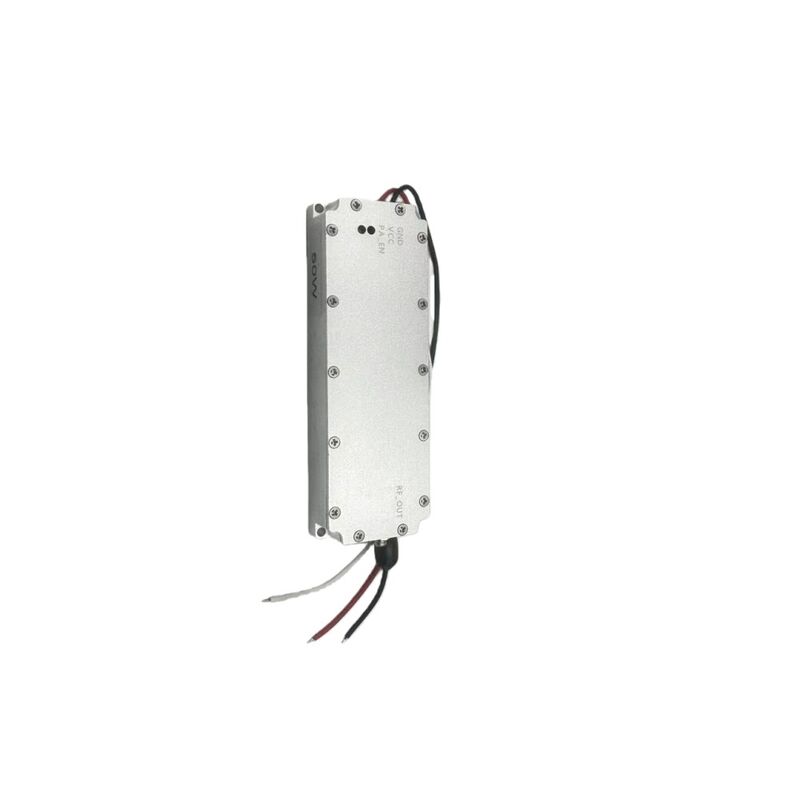

Product picture
Test Part
